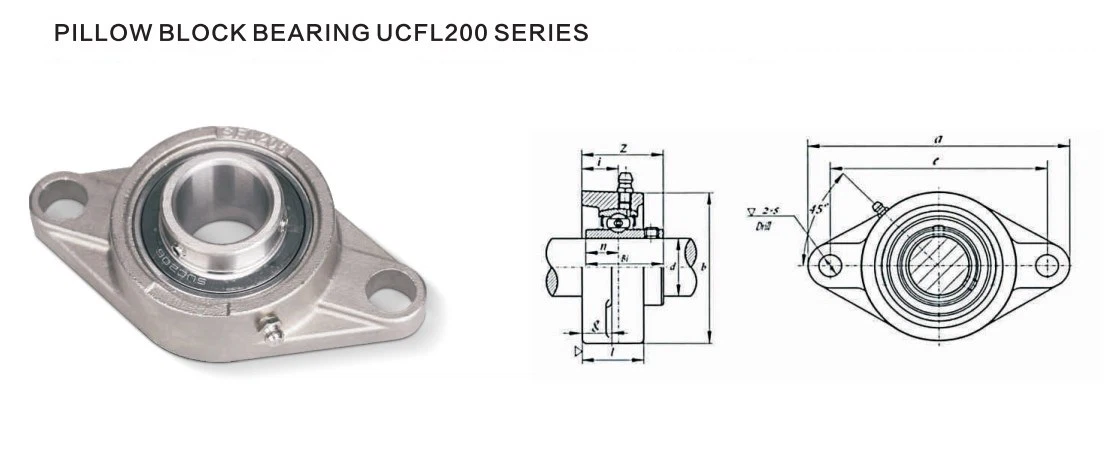

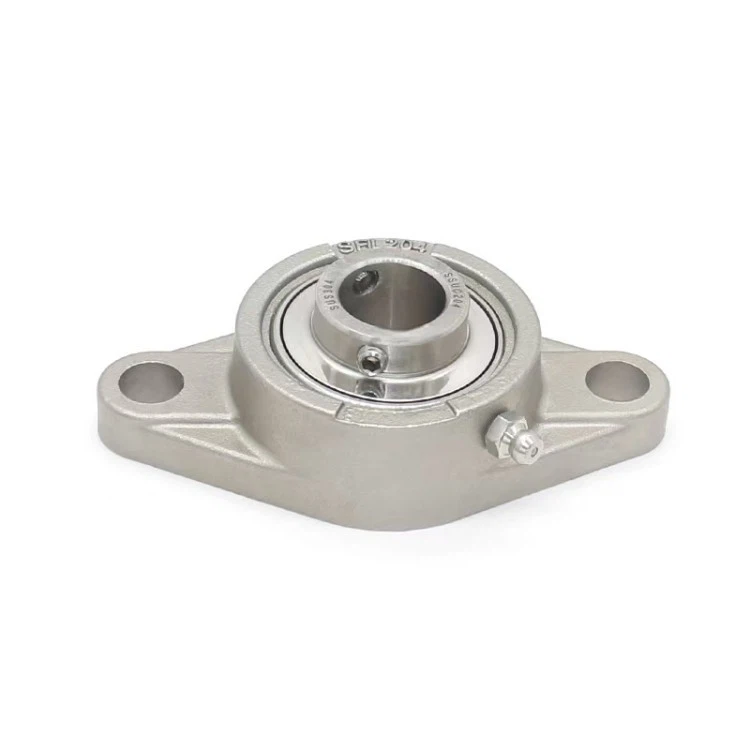

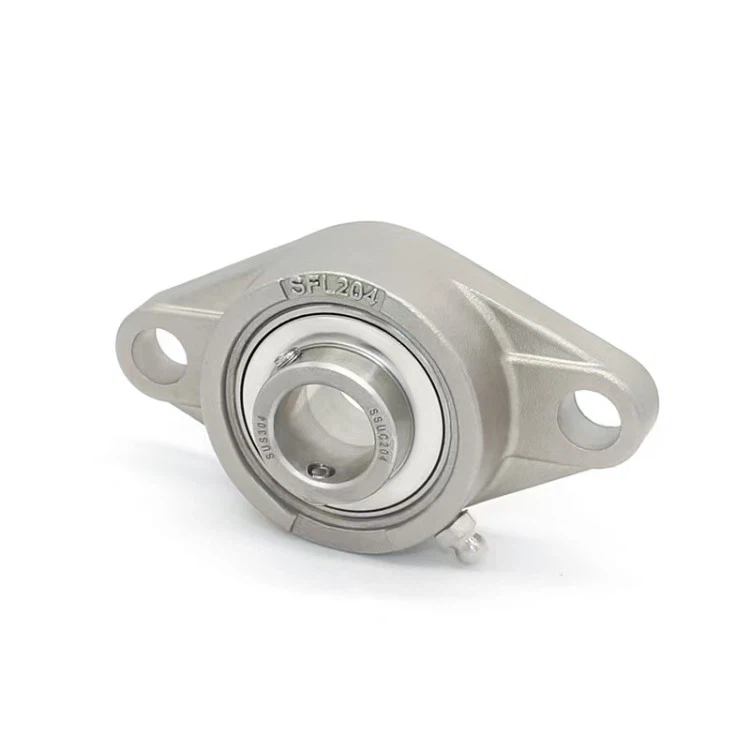

كتلة وسادة تحمل UCFL200

نموذج على.

رمح

الأبعاد (مم)

حجم الترباس (مم)

الوزن (كجم)

d

(في.)

(مم)

a

e

i

g

1

S

b

ثنائية

n

UCWFL201

201-8

1/2

12

100

76.5

15

11

27

11.5

57

30.9

11.5

M10

0.38

UCWFL202

202-10

5/8

15

100

76.5

15

11

27

11.5

57

30.9

11.5

M10

0.38

UCWFL203

203-11

11/16

17

100

76.5

15

11

27

11.5

57

30.9

11.5

M10

0.36

UCFL204-12

204

3/4

20

112

90

15

11

26

12

59

33.3

12.7

M10

0.36

UCFL205-14205-15

205

205-16

7/8

15/16

1

25

128

99

16

13

27

16

66

35.7

14.3

M14

0.50

UCFL206-18206

205-19

206-20

1-1/8

1-3/16

1-1/4

30

148

117

18

13

30

16

79

40.2

15.9

M14

0.76

UCFL207-20207-21

207-22

207

207-23

1-1/4

1-5/16

1-3/8

35

159

130

19

15

31.5

16

89

44.1

17.5

M14

0.96

UCFL208-24208-25

208

1-7/16

1-1/2

1-9/16

40

174

144

21

15

34

16

99

51.2

19

M14

1.28

UCFL209-26

209-27

209-28

209

1-5/8

1-11/16

1-3/4

45

187

148

22

16

36

19

107

52.2

19

M16

1.63

UCFL210-30210-31

210

1-7/8

1-15/16

50

196

157

22

16

38

19

114

54.6

19

M16

1.73

UCFL211-32211-34

211

211-35

2

2-1/8

2-3/16

55

222

184

25

18

41

19

128

58.4

22.2

M16

2.44

UCFL212-36

212

212-38

212-39

2-1/4

2-3/8

1-7/16

60

250

202

29

18

48

23

140

68.7

25.4

M20

3.70

UCFL213-40

213

2-1/2

65

258

210

30

22

50

23

155

69.7

25.4

M20

4.76

UCFL2114-44

2-3/4

70

265

216

31

22

54

23

160

75.4

30.2

M20

5.30

UCFL215-47

215

215-48

2-15/16

3

75

275

225

34

22

56

23

165

78.5

33.3

M20

5.85

UCFL216

80

290

233

34

22

58

25

180

83.3

33.3

M22

7.00

UCFL217-52

217

3-1/4

85

305

248

36

24

63

25

190

87.6

34.1

M22

9.80

UCF [218-56

218

3-1/2

90

320

265

40

25

68

25

205

96.3

39.7

M22

12.40
